Musea

⚠️ Work in Progress: Musea is still evolving. File formats, APIs, and UI behavior may change.

Musea is Vize's art-file and component-gallery toolchain.

• vize_musea is the Rust core for parsing *.art.vue, generating docs, building prop palettes, autogenerating variants, and preparing VRT data.

• @vizejs/vite-plugin-musea is the recommended gallery and dev-server workflow today.

• musea-vrt is the CLI for visual regression snapshots, a11y audits, approvals, cleanup, and generated art files.

Overview

Musea uses *.art.vue files to describe component variants with Vue-native syntax.

Installation

Install vp once from the Vite+ install guide, then add the package:

vp install -D @vizejs/vite-plugin @vizejs/vite-plugin-musea vize

Recommended Usage: Vite Plugin

// vite.config.ts
import { defineConfig } from "vite";
import vize from "@vizejs/vite-plugin";
import { musea } from "@vizejs/vite-plugin-musea";

export default defineConfig({
  plugins: [
    vize(),
    musea({
      include: ["**/*.art.vue"],
      basePath: "/__musea__",
      previewCss: ["src/styles/main.css"],
      previewSetup: "musea.preview.ts",
    }),
  ],
});

Run your normal Vite dev server and open the configured Musea route:

vp dev

http://localhost:5173/__musea__

If you install the vize npm package, vp exec vize musea is a convenience wrapper around Vite:

vp exec vize musea
vp exec vize musea --build

Shared Config

musea() options override shared config. Put stable project defaults in vize.config.ts and keep preview-only settings in vite.config.ts.

// vize.config.ts
import { defineConfig } from "vize";

export default defineConfig({
  musea: {
    include: ["src/**/*.art.vue"],
    exclude: ["node_modules/**", "dist/**"],
    basePath: "/__musea__",
    storybookCompat: false,
    inlineArt: false,
  },
});

Shared config currently covers include, exclude, basePath, storybookCompat, and inlineArt. Pass previewCss, previewSetup, tokensPath, theme, and storybookOutDir directly to musea().

Art Files

<script setup lang="ts">
import { ref } from "vue";

defineArt("./MyButton.vue", {
  title: "MyButton",
  category: "Components",
  status: "ready",
  tags: ["button", "ui", "input"],
});

const pressed = ref(false);
</script>

<art>
  <variant name="Default" default>
    <MyButton type="button" :pressed="pressed">Click me</MyButton>
  </variant>

  <variant name="Outlined">
    <MyButton type="button" outlined :pressed="pressed">Click me</MyButton>
  </variant>
</art>

defineArt(source, options) is a compiler macro. It declares the component that Musea should load, plus metadata that used to live on <art>. Prefer a relative component path string such as defineArt("./MyButton.vue", { title: "MyButton" }); Musea imports that component in generated runtime code and the language server uses the same source for prop and slot inference. The source string participates in path completion, unresolved-file diagnostics, document links, and go-to-definition.

<art title="..." component="..."> still works for compatibility, and explicit <art> attributes override defineArt metadata when both are present.

Variant-local state

Root <script setup> state is isolated per variant by default. Each variant receives its own setup instance, so refs and computed values in one variant do not leak into another:

<script setup lang="ts">
import { computed, ref } from "vue";

defineArt("./Counter.vue", { title: "Counter" });

const count = ref(0);
const doubled = computed(() => count.value * 2);
</script>

<art>
  <variant name="Base" default>
    <Counter :count="count" />
  </variant>
  <variant name="Doubled">
    <Counter :count="doubled" />
  </variant>
</art>

Use <script setup isolate="false"> only when the art file intentionally needs one shared setup instance across every variant:

<script setup lang="ts" isolate="false">
import { ref } from "vue";

defineArt("./Counter.vue", { title: "Counter" });

const sharedCount = ref(0);
</script>

Anatomy

Keep art files close to the component when variants are part of the component's contract:

src/components/Button.vue
src/components/Button.art.vue

Use a separate stories or art directory when a design system owns many cross-cutting examples:

src/components/Button.vue
stories/forms/Button.art.vue
stories/navigation/Menu.art.vue

Inline Art

When inlineArt is enabled, regular .vue files that contain an <art> block can appear in the gallery. This is useful for small components where examples should live in the same file.

musea({
  inlineArt: true,
});

Inside inline art, use <Self> to render the host component.

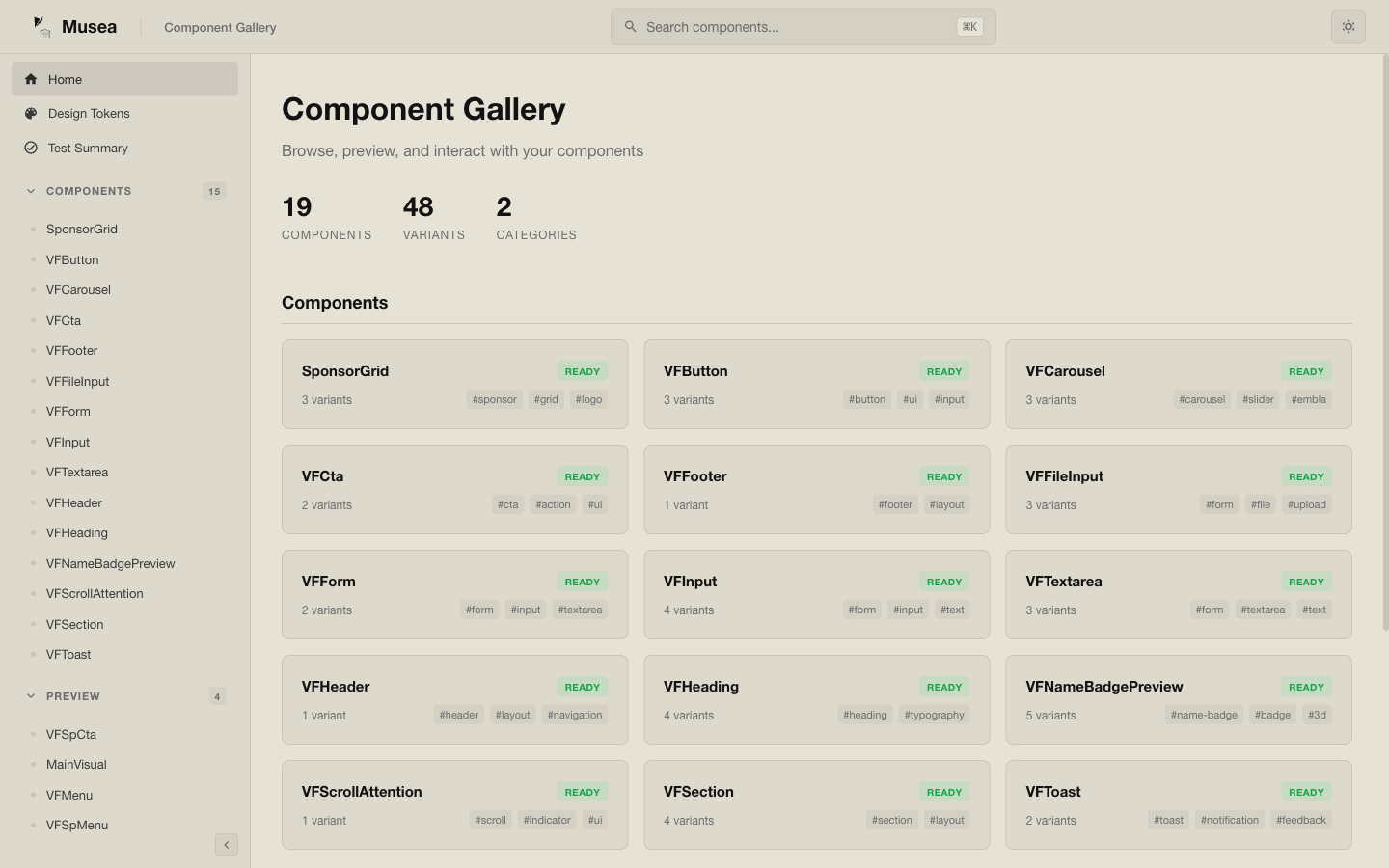

Gallery Features

Musea can surface:

• component and variant metadata

• prop palette generation

• design token views

• accessibility checks

• visual regression testing helpers

• Storybook-compatible output when requested

Props Palette

The palette pipeline can infer interactive controls from component metadata and art definitions.

Design Tokens

@vizejs/vite-plugin-musea can ingest a Style Dictionary-compatible token file and expose it in the gallery UI.

musea({
  tokensPath: "src/tokens.json",
});

Preview Configuration

You can inject project CSS and preview setup code:

musea({
  previewCss: ["src/styles/main.css", "src/styles/musea-preview.css"],
  previewSetup: "musea.preview.ts",
});

This is useful for installing plugins such as vue-i18n or vue-router in the preview iframe.

// musea.preview.ts
import type { App } from "vue";
import { createI18n } from "vue-i18n";

export default function setup(app: App) {
  app.use(
    createI18n({
      legacy: false,
      locale: "en",
      messages: {
        en: {},
      },
    }),
  );
}

Visual Regression Testing

The package exposes the musea-vrt binary:

vp exec musea-vrt --base-url http://localhost:5173
vp exec musea-vrt --update
vp exec musea-vrt --ci --json
vp exec musea-vrt --a11y
vp exec musea-vrt approve
vp exec musea-vrt approve "Button/*"
vp exec musea-vrt clean

Typical CI flow starts the Vite server in one process, then runs the snapshot command against it:

vp dev --host 0.0.0.0
vp exec musea-vrt --base-url http://localhost:5173 --ci --json

Use --update locally to refresh baselines, approve to accept failed snapshots, and clean to remove orphaned snapshots after deleting variants.

Generate Art Files

Use the generator to create a first .art.vue draft from an existing component:

vp exec musea-vrt generate src/components/Button.vue

The generated file is a starting point. Review the variants, titles, tags, and prop coverage before committing it.

Storybook Output

Enable Storybook-compatible CSF generation when you want Musea art files to feed a Storybook setup:

musea({
  storybookCompat: true,
  storybookOutDir: ".storybook/stories",
});

CLI Status

vize musea exists in the Rust CLI, but the recommended Musea workflow today is still the Vite plugin path. Treat the Rust subcommand as experimental while the dedicated gallery workflow settles.

The Rust subcommand can scaffold a starter art project:

vize musea new

Related Packages

• @vizejs/vite-plugin-musea

• @vizejs/musea-mcp-server

• vize_musea
