A tool to bake VAT (Vertex Animation Texture) from AnimationClip with sample shaders for Unity.

Edit > ProjectSettings... > Package Manager > Scoped Registries

Enter the following and click the Save button.

"name": "fuqunaga",
"url": "https://registry.npmjs.com",
"scopes": [ "ga.fuquna" ]

Window > Package Manager

Select MyRegistries in Packages:

Select VatBaker and click the Install button

1. Window > VatBaker
2. Set a GamObject with Animation and SkinnedMeshRenderer.
3. (Optional) Set other parameters.
4. Push the Bake button.
5. Assets are created under Assets/VatBakerOutput and a VAT GameObject is put in the hierarchy.

#include `Packages/ga.fuquna.vatbaker/Shader/vat.hlsl`

vertex shader

float animationTime = CalcVatAnimationTime(<baseTime[sec]>);
float vertexPositionLocal = GetVatPosition(vertexId, animationTime);
float vertexNormalLocal = GetVatNormal(vertexId, animationTime);

See VatUnlit.shader, VatSurfaceStandard.shader

It is recommended to duplicate the material under Assets/VatBakerOutput and change the shader so that the original property values can be used as they are.

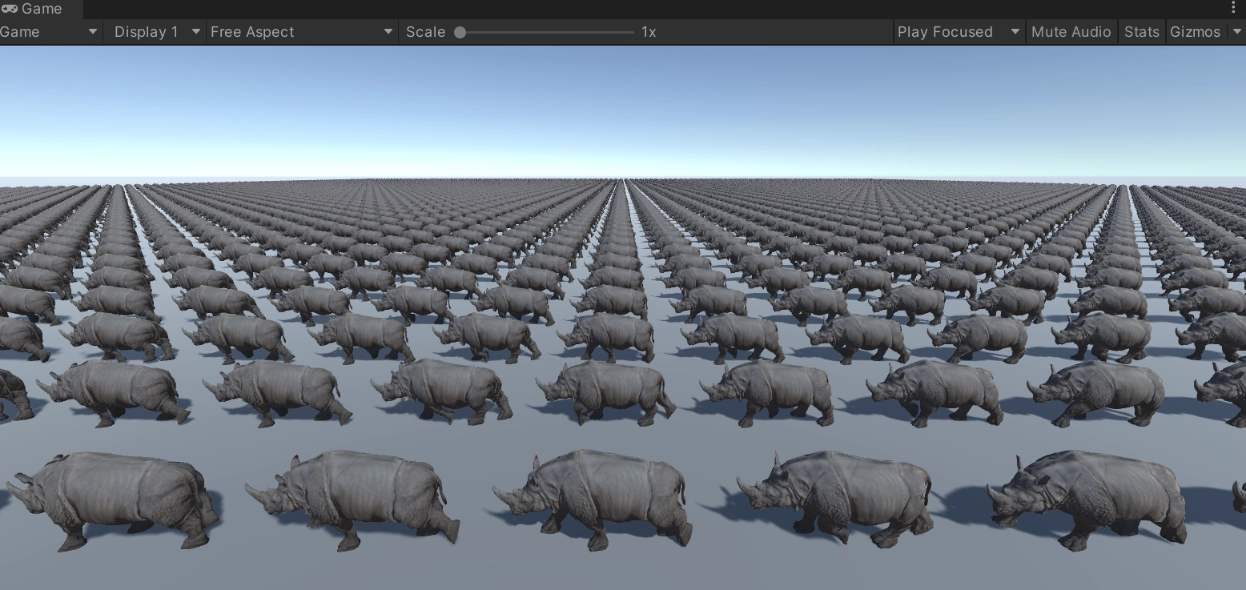

• Rhino Animation Walk © GremorySaiyan (Licensed under CC BY 4.0)

• Texture Animation: Applying Morphing and Vertex Animation Techniques
• VertexAnimator
• Animation-Texture-Baker
