⚠️ This is a reference snapshot, not a maintained project. The purpose of this repository is to serve as a codebase that you can show to an AI assistant (Claude, ChatGPT, Codex, etc.) to help you build a similar system. It is not intended to be cloned and run as-is.

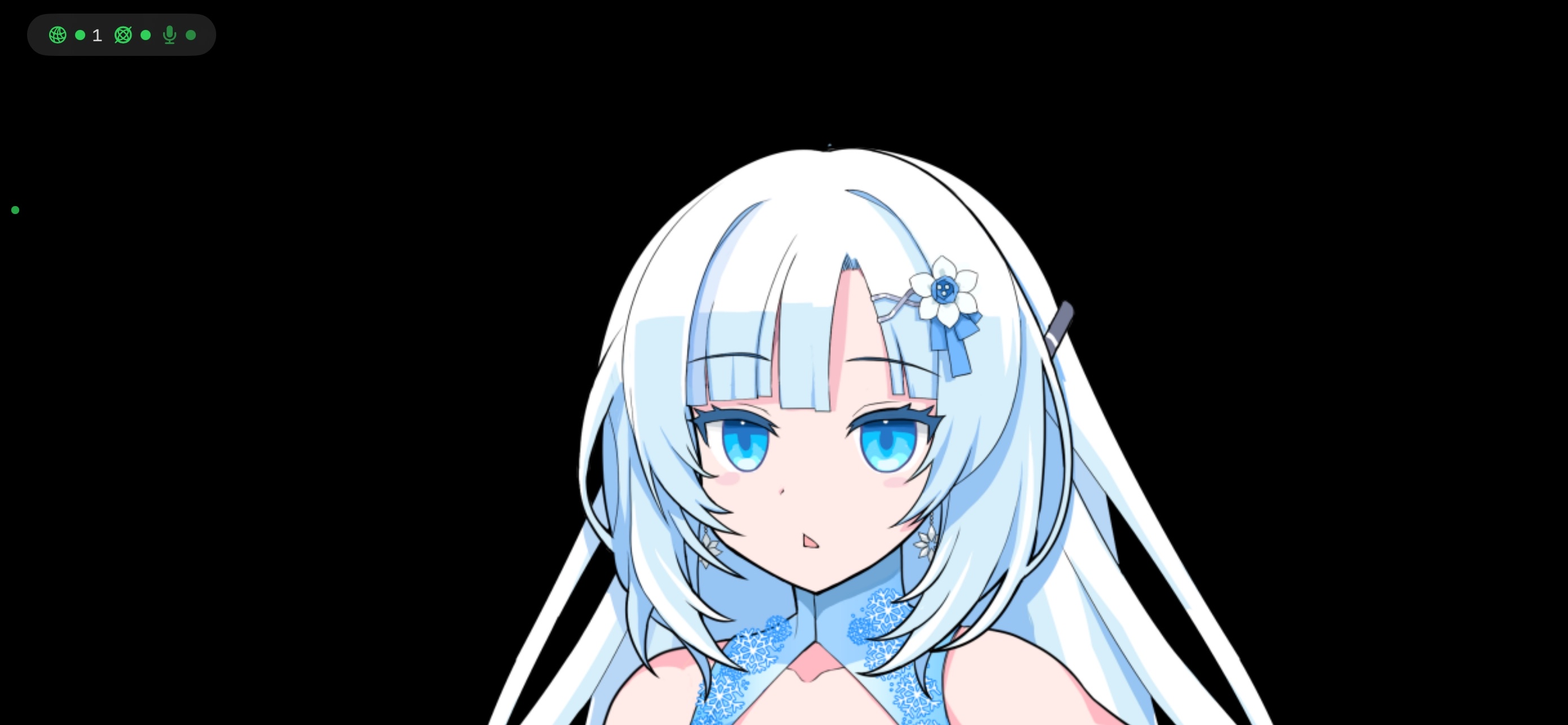

Idle	Voice Input	Thinking	Speaking

Character art: WhiteCUL立ち絵素材 by moiky — not included in this repository. You must supply your own images.

An iOS app that turns an iPhone (mounted on an Insta360 Flow Pro or any DockKit-compatible motorized stand) into a physical AI avatar with:

• 🎭 29 expressions — pre-composed character images swapped in real-time
• 🗣️ Text-to-speech with lip sync — audio streamed from a server, mouth animation synced to playback
• 💬 Speech bubbles — assistant and user speech displayed on screen
• 🎤 Voice input — on-device wake word detection + speech-to-text (iOS 26+ SpeechAnalyzer)
• 🤖 DockKit motor control — nod, shake, look around, custom velocity/rotation sequences
• 🌙 Idle scenes — sleeping, snacking, singing, thinking, bored (with burn-in protection)
• 📡 WebSocket control — all features controllable via JSON commands over LAN

┌─────────────┐     WebSocket (8765)     ┌──────────────┐
│  AI Backend  │ ◄──────────────────────► │  iPhone App  │
│  (any host)  │   JSON commands + audio  │  (this code) │
└─────────────┘                           └──────┬───────┘
                                                 │ DockKit API
                                          ┌──────▼───────┐
                                          │ Motorized     │
                                          │ Phone Stand   │
                                          └──────────────┘

The app is the display + motor controller. Your AI backend synthesizes speech (e.g., VOICEVOX, ElevenLabs), encodes it as base64 WAV, and sends it along with expression/motion commands via WebSocket.

See spec/ for detailed documentation:

• architecture.md — System diagram and data flow
• websocket-protocol.md — Full WebSocket API reference
• host-scripts.md — Backend control scripts
• voice-input.md — On-device voice input (iOS 26+)
• dockkit-integration.md — Motorized stand control
• idle-scenes.md — Idle animation system

The host-scripts/ directory contains the backend tools that control the app:

# Quick start
export YUKI_IPHONE_IP=<your-iphone-ip>
./host-scripts/yuki_cmd.sh "こんにちは" --expression happy --motion smallNod

See spec/host-scripts.md for full documentation.

• Character images — The original uses WhiteCUL (copyrighted). You must supply your own PNG images named to match the Expression enum cases in ExpressionManager.swift.
• TTS backend — The app plays audio sent to it; you need your own speech synthesis pipeline.
• AI orchestration — The WebSocket protocol is documented in spec/websocket-protocol.md. Build your own controller.

1. Show this code to your AI assistant and describe what you want to build
2. The AI can understand the architecture from the code + specs and help you adapt it
3. Replace the expression images with your own character art
4. Build your own backend that speaks the WebSocket protocol
5. Optionally integrate DockKit for physical movement

• iOS 17.0+ (iOS 26+ for voice input features)
• Xcode 26+
• DockKit-compatible stand (optional, for motor control)
• A TTS engine on your network (VOICEVOX, ElevenLabs, etc.)

• Character art in screenshots: WhiteCUL立ち絵素材 by moiky — used under the original distribution terms. The character image files are not included in this repository.
• WhiteCUL: A character from the VOICEVOX project

MIT — The code is free to use. Character art is NOT included and must be sourced separately. Screenshots contain WhiteCUL character art by moiky, used for demonstration purposes only.
