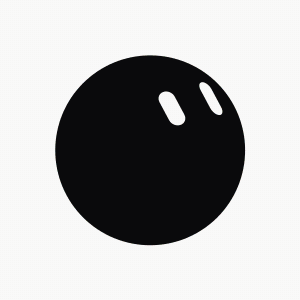

An SVG recreation of the x.ai bot avatar: one filled black shape that morphs between 14 states, two white shapes for the eyes that morph independently, on a plain background. No animation library.
pnpm install
pnpm devThen open http://localhost:5190.
pnpm test # vitest
pnpm build # vue-tsc --noEmit && vite buildVue 3, Vite, TypeScript, Tailwind 4. No ESLint and no Prettier: vue-tsc is the
only gate, so run pnpm build before you call something done.
The rail on the left switches between three views. Customise offers 8 body shapes, 12 colours and 16 rest expressions, kept between visits. Animations is a small editor: arrange states into a timeline, set how long each is held, save the result. Settings holds the language (French, English or Chinese) and the credits.
Anything on screen can be exported: the avatar as SVG, PNG or an animated GIF, and a whole timeline as GIF or MP4. The still formats need no library at all, and the video encoder is only fetched the first time you ask for one.
Two URLs are worth knowing:
#planche: the 14 states side by side, frozen. Quick visual check.#etat=orbit&stop: opens one state directly, playback paused.
They're measured, not chosen. The reference video was cut at 10 fps and each state measured off the frames: silhouettes by sub-pixel ray casting, eyes by capsule fitting, colours and stroke widths by direct sampling.
So the constants in the code are measurements, and rounding them to friendlier values breaks the resemblance, which is the only thing this project is trying to get right. A few are counter-intuitive enough to be worth knowing before you correct anything:
| What you'd assume | What the video shows |
|---|---|
The eyes lean // |
They lean \\, around 26° off vertical |
| The body is a squircle | It's a perfect circle, radial deviation under 0.7% |
| Transitions are springs | Exponential ease-outs; the body never overshoots |
| The comet crosses the screen | The dot stays put, the trail orbits it |
| The avatar floats at rest | It doesn't. The life is gaze drift and blinking |
docs/measurements.md has the rest, including how to regenerate the extracted profiles.
src/bot/ is framework-free and clock-free: engine.sample(t) is a pure
function of time. Pausing, resuming, jumping to an arbitrary date and running
tests all produce the same image, which is what makes the frozen state board and
the DOM-less test suite possible.
| docs/architecture.md | The engine, radial-profile morphing, eyes as mask holes |
| docs/measurements.md | What was measured, and regenerating profiles.ts |
| docs/intro.md | The arrival sequence, and why it only plays one state |
| docs/interface.md | Layout, the three-column scene, CSS traps |
| docs/export.md | Exporting to SVG, PNG, GIF and MP4 |
| docs/i18n.md | The hand-rolled translation layer |
<BloubBot v-model:block="block" v-model:state="state" v-model:playing="playing" />
<BloubBot state="orbit" :size="120" :frozen-at="1.2" />block is the playback cursor: a montage can play the same state twice, so the
index is what identifies where you are; state follows it as an output. Pass
frozenAt and the component renders one exact frame with no animation loop, which
is how the thumbnails and the state board are drawn.
Props: size, shape, color, expression, paper, frozenAt, cycle,
follow, gaze. Models: block, state, playing, elapsed. See
BloubBot.vue for the details.
CHANGELOG.md, one entry per release — which is how you tell whether the copy you have carries a given fix.
MIT. See LICENSE.
Not affiliated with, endorsed by or connected to x.ai. It recreates the visual behaviour of their bot avatar as an exercise; "Grok" and "x.ai" belong to their owners. The MIT licence covers the code in this repository, not the design it imitates.
