DesignIO

A personal, fully-3D clothing design studio — in the spirit of CLO3D and Browzwear — for designing your own clothes realistically and virtually. Built as a desktop app with Electron + Three.js + TypeScript.

Design garments on a slim, poseable human mannequin, dress them in real fabrics with live cloth physics, shape and customize the body, animate it, and export the result — all in a photographic studio scene, from a friendly launcher through a professional CAD-style workspace.

🚧 Development stage

DesignIO is an active work-in-progress. It runs and is genuinely usable, but it is under heavy development: features are experimental, APIs and visuals change frequently, and rough edges are expected. This is not a finished or released product.

Author: Zayan Khan · Contact: khanzayan_123@hotmail.com

© 2026 Zayan Khan. All rights reserved.

This repository and everything in it (source code, designs, assets, and ideas) is proprietary and private. It is not open source and carries no license to use it.

You may not use, run, copy, clone, fork, modify, publish, distribute, reproduce, reverse-engineer, or create derivative works from any part of this project — in whole or in part — without explicit prior written permission from the author.

• Permission must be requested in advance, by email, before any such use.
• Contact for permission: Zayan Khan — khanzayan_123@hotmail.com (or any other means of contacting the author).
• Unauthorized use, copying, or distribution may result in legal action.

If you are unsure whether something is allowed, ask first.

• At a glance
• The homepage & "Design your piece"
• The professional studio — every panel
• The garment catalog — 57 garments
• Construction detail
• The fabric library — 71 fabrics
• Surface design & fabric finishes
• Per-part & per-panel fabric
• Prints, logos & text
• The avatar — full customization
• Accessories, headwear & neckwear
• Real 3D cloth simulation
• The 2D flat pattern — both ways
• Layering, projects & files
• Studio lighting & backdrops
• Analysis & fit tools
• Motion, poses & shots
• Sizing, measurements & the manufacturing pack
• Export everything
• Run it
• How to ship it
• How it's built
• Roadmap

The homepage launcher: start a New design, jump straight in from a template, or open Your projects.

Entry is a homepage launcher → the "Design your piece" builder → the full studio (with Your projects always a click away). The builder is the friendly front door: choose a garment, colour it, add your own graphic + text, pick the neckline · sleeves · size, shape the mannequin, and set the fit — with Quick looks (one-tap presets), a Surprise me randomiser, a Spin toggle, and an aurora that tints to your colour, all on a live, auto-rotating 3D preview. Hit Design in 3D → to open it in the full studio (and ← Start to come back, keeping your design).

Pick from a categorised garment catalog, choose a fabric, and see a live 3D preview draped on the mannequin — then open it in the full studio.

The studio is a dockable CAD-style workspace built vanilla (CSS + split.js + localStorage) — every region resizes, collapses, and persists across sessions, with sensible defaults so it stays approachable, not overwhelming.

The menu bar (top) — File (New · Open/Save .dio project · every export), Edit (undo/redo · cut/copy/paste/duplicate/delete garment), View, Avatar, and Help (a keyboard-shortcuts overlay, press ? — every shortcut is rebindable: click its key chip, press a new combo; conflicts are caught and "Reset to defaults" restores the stock map). Menu items grey out at their boundaries (nothing to undo, empty clipboard, last garment).

The left Library — a tabbed, search-as-you-type asset browser:

The central viewport — three tabs with a persistent quick-edit toolbar floating over both the 3D and 2D views (size · neckline · sleeve · length · width · hem — every value click-to-type for exact numbers):

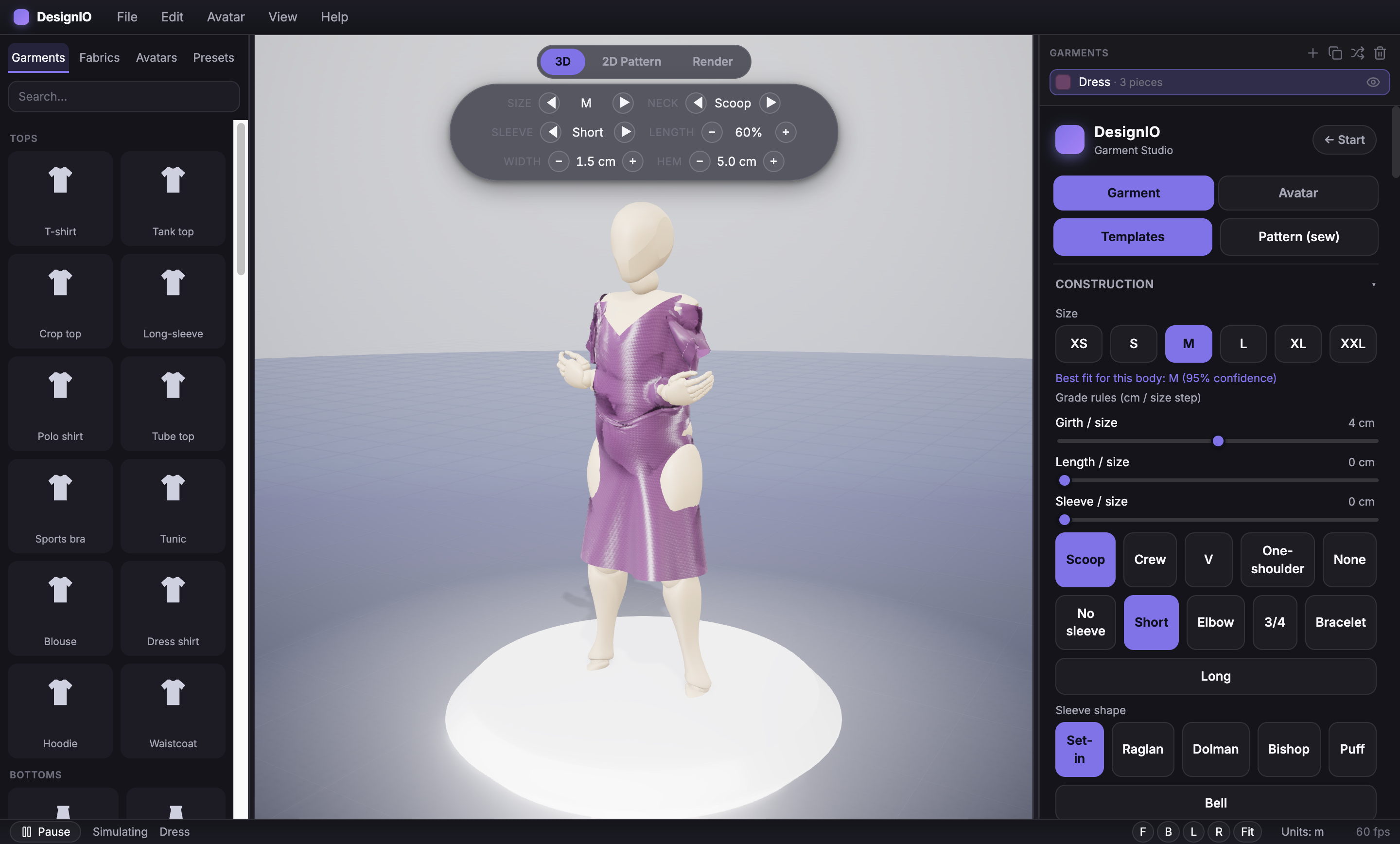

• 3D — the live simulated garment on the avatar.
• 2D Pattern — the real flat pattern of the garment you designed (2D and 3D stay in sync).
• Render — supersample the current view to a crisp HD / 2K / 4K PNG and save it, or flip on ✦ Path traced for an offline, physically-based GI hero render (true global illumination · soft shadows · accurate fabric sheen).

The right dock — an Object Browser (every garment worn on the body: select · show/hide · add · duplicate · delete) above a context-sensitive Property Editor that switches between three contexts:

• Garment — size (XS–XXL) · neckline · sleeve + sleeve-shape · length · looseness · flare · the full construction toggle set · part & panel fabric · contrast trim · seam allowance + notches · the Prints manager · appearance (roughness · sheen · weave density/depth · anisotropy · sheerness) · physics (weight · stretch · drape · grip) · surface finishes (textile · ombré · wear · sparkle · iridescent · quilt · lace · fur · photo swatch) · colorways.
• Avatar — body type (female/male) · height · build · bust/waist/hips · body presets · **skin tone
  • undertone** · hair + colour · face · accessories, headwear & neckwear toggles · lookbook pose · animation (idle/walk/turn) + speed.
• Scene — lighting preset · backdrop · gravity · wind preset · exposure · and the fit heatmap / stress / pressure-map / wrinkles view toggles.

The status bar (bottom) — live fps, a simulate / pause toggle, and the working units.

First time in? An onboarding tour walks you through it — a spotlight ring highlights each region (menu bar · Library · viewport · layers & properties · status bar) with a short explainer card. It runs once automatically and is always re-openable from Help → Take the tour.

Garments are built from a data-driven schema (a registry of definitions composed from parametric pieces), so breadth comes from data, not bespoke code. Adding a garment is a data change, not new code. Grouped by category:

• Tops (12) — t-shirt, tank, crop top, long-sleeve, polo, tube top, sports bra, tunic, blouse, dress shirt, hoodie (with a real draped hood), waistcoat
• Bottoms (12) — A-line / pencil / maxi skirt, trousers, shorts, wide-leg, cargo, slim trousers, joggers, leggings, high-waist leggings, suit trousers
• Dresses (4) — dress, sheath, slip, gown
• One-pieces (2) — jumpsuit, swimsuit
• Outerwear (6) — blazer, coat, suit jacket, overcoat, cardigan, bomber
• Headwear & neckwear (19) — cloth-sim head/neck pieces that really drape: snood (cowl→hood) · beanie (cuffed · slouchy · fisherman · pom-pom · brimmed) · balaclava / ski mask · convertible 3-way · helmet liner · durag (with a nape flap) · satin bonnet · hijab under-cap · chullo · bandana · twisted headband · neck gaiter · scarf (+ skinny silk)

The construction panel is schema-driven: each garment shows only the controls it supports — neckline (scoop / crew / V / strapless), sleeves (short / long) with a sleeve library of shapes (set-in · raglan · dolman · bishop · puff · bell), length, looseness, and flare. Tops & dresses get shoulder coverage + cinched waists; the jumpsuit is a torso + two legs.

Gown (strapless satin)	Jumpsuit (denim, one-piece)	Coat (outerwear, to the knee)

Beyond the silhouette, add real construction detail — each shows up both on the 3D garment and in the flat pattern (the panels reshape, the pattern notes the detail), and each garment only offers the details it actually supports:

• Collar (raises/closes the neckline into a stand) with a collar-style picker, fitted cuffs, pleats (knife · box · accordion · cartridge · gather · shirring — fine elastic gathers · smocking — a honeycomb diamond lattice) for a fuller, swishier hem, darts (a nipped, tailored waist), patch pockets (chest on tops, hips on skirts/trousers — topstitched in 3D, a pocket panel on the pattern), and a rolled hem.
• A front closure on front-opening pieces (blouse · blazer · coat · hoodie …) — a centre-front placket with a button column or a zip + metal pull (the hoodie zips). And it's functional: toggle Worn open and the centre-front seam is really unsewn — the garment gaps and hangs open off the body, not just a drawn line.
• Deeper tailoring flags — lined · interfaced · waistband · facing · drawstring · ruffles · boning · ribbing · yoke · princess seams.

Every garment is also topstitched: drape-following dashed contrast stitch lines trace the hems, necklines, waistbands and cuffs in 3D (a lighter thread on dark cloth, darker on light — the classic visible topstitch, or the trim colour when contrast trim is on), and the 2D flat pattern draws a matching gold topstitch guide inset from each panel's sew line.

Every fabric carries physical properties (weight, stretch, bendiness, friction) that drive the drape, and visual properties (weave, sheen, anisotropy, sheerness, roughness) that drive the material — so the same garment drapes differently on stiff denim vs fluid chiffon. Weight also drives fabric thickness: every garment carries an inner lining shell (pushed inward along the surface normal by the fabric's real thickness), so hems, necklines and openings read solid instead of paper-thin — a heavy wool coat sits visibly thicker than a light poplin.

• Wovens (16) — poplin, oxford, chino twill, denim, canvas, waxed cotton, corduroy, cap corduroy, linen, wool flannel, tweed, chambray, gabardine, worsted wool, melton, boiled wool
• Silks & smooth (5) — charmeuse, satin, crepe, organza, chiffon
• Knits (9) — ponte, scuba, jersey, rib, waffle, French terry, fleece, cable knit, athletic mesh (real perforated cutout)
• Specialty (9) — leather, patent, suede, velvet, tulle, spandex, lamé (metallic), neoprene (scuba), sequin base

A velvet dress — each fabric drives look and drape	Macro close-up of satin — procedural weave + sheen

Every weave has its own procedural micro-surface — smooth satin floats, vertical corduroy cords, a chunky waffle-knit thermal honeycomb, a soft fuzzy fleece pile, and smooth grained leather (not a woven cross):

More wovens — a felted loden boiled wool, a low-sheen waxed-cotton rain shell, and a cap corduroy with chunkier mid-wales scaled for small panels:

Live-inspect any fabric (GSM, stretch, drape, grip, roughness, sheen, weave density/depth, anisotropy, sheerness), and macro-zoom to see the woven micro-surface. Pick a colour and DesignIO snaps it to the nearest named production reference (TR-####), shown in the panel and carried into the tech-pack.

Go far past a flat colour — layer a surface finish onto any garment, all baked into the material so they simulate and export with it:

Textile patterns	Ombré / dip-dye	Distressed / washed
stripe · plaid · check · gingham · polka · camo	top-down · bottom-up · radial	faded · acid-wash · distressed

Sequins / beading / foil	Iridescent / holographic	Sheer lace / broderie
glittering eveningwear finishes	colour-shifting thin-film	chantilly · geometric · fishnet (real see-through cutout)

Quilting	Faux-fur / shearling / fleece	Wet look
channel · diamond · box pillow-loft	directional fuzzy pile, no extra geometry	waterlogged: darker + glossy, clings limp

Thermochromic (heat-reactive)	Reflective piping
shifts colour with a temperature slider (leuco-dye pale fade)	retroreflective hi-vis trim that lights toward the camera

The iridescent finish flows a real oil-on-water swirl across the surface (a procedural thin-film thickness map), not a flat colour shift. The Wet look toggle (in the Appearance panel) makes the fabric heavier + limp + clinging and darker + glossy — a rain / swim / beach preview.

You can also import a fabric photo and DesignIO bakes it into a seamless tiling PBR material (albedo

• derived normal + roughness) that clothes the whole garment. Every fabric renders with a procedural weave (a paired normal and roughness map so yarn crowns catch the light and valleys stay matte), per-family cloth sheen, and a warp-aligned anisotropic highlight — so satins streak and wovens read matte, not plastic.

Design the textile itself, not just pick one:

Weave draft designer	Knit stitch + colourwork	Yarn library
threading · tie-up · treadling → the real drawdown	knit/purl/cable charts + fair-isle / intarsia colour	count · ply · twist change the hand — look and drape

• Tartan sett designer — a real sett (thread-count coloured stripes) woven in 2/2 twill: a reflective sett mirrors about its two pivot threads into the symmetric repeat, and the twill diagonal blends the warp + weft so a colour crossing itself reads solid while two different colours hatch half-and-half (Black Watch · Royal Stewart · Hunting · Dress Blue · Camel check · Grey).

• Weave draft designer — author a real loom draft (threading · tie-up · treadling); the drawdown's interlacement + float lengths bake into the weave's normal + roughness maps (plain · basket · twills · satin · herringbone presets, or draw your own).

• Knit stitch designer — a hand-knitter's chart (knit · purl · cable crossings) drives the knit surface: ribs, seed, garter, a braided cable rope.

• Intarsia / colourwork — a yarn-palette colour chart, tiled allover (fair-isle) or placed as a chest block (intarsia); composes with the stitch chart into a true jacquard.

• Yarn library — count (tex) · ply · twist grade the yarn; the same fabric in lace vs chunky yarn genuinely drapes heavier and shows a coarser gauge.

• Physical fabric editor + virtual drape test — dial real units (GSM · thickness · bending rigidity · stretch · shear) and measure the result like a textile lab: a Cusick drape-coefficient bench runs on the live solver, plus the Peirce cantilever bending length.

Real garments aren't one material. Pick a part — Body · Sleeves · Legs — or a panel — front vs back on the body and each leg — and give it its own fabric and colour (leather sleeves on a polyester body, a jersey dress with a leather back, denim legs with a contrast back panel…). Each part's fabric even drives its physics, not just its look — leather drapes stiffer than jersey, so a leather back hangs crisper than the fluid front. Add a contrast trim on the collar / cuffs / pockets / hem, and set the seam allowance + notches for production.

Per-part fabric — leather sleeves, denim body, contrast trim.	Per-panel fabric — a jersey front, a leather back.

Import several logos/graphics (PNG/JPG/WebP) and text, and place each one exactly — its own position, size and rotation — via the studio's Prints manager. Add a chest logo, a slogan, a sleeve badge… each print is independent and updates live while the cloth simulates. Prints follow the garment — a logo dragged onto the back shows on the back panel even when that panel wears its own fabric — and each sits on its own part (body / sleeves / legs) with a style: flat, raised embroidery, or an appliqué patch.

The default body is an imported GLB avatar. Drop a CC0 photoreal human into src/renderer/assets/mannequin.glb and it renders with its own skin (a bare rig is painted with the studio mannequin material), standing arms-down from its idle pose. It falls back to a procedural metaball body sculpted like a real dress form — defined shoulders, bust/chest, nipped waist, hips, tapered limbs with knees, and shaped head / hands / feet — if it can't load, or flip Imported body (GLB) off to sculpt on that instead. Either way the capsule skeleton stays the cloth collider, so garments drape correctly.

Female model	Male model	Imported GLB body (default)

Then make it yours:

• Body shaping — height, overall build, and independent bust / waist / hips, plus body-shape presets (Runway · Curvy · Plus · Athletic · Petite · Tall), kids' size blocks (Toddler · Child · Tween · Teen — age-appropriate proportions: a bigger head, a straight torso, no adult waist nip) and a maternity fit (a trimester 1–3 belly bump that is both collider and visual, so garments truly drape over it). A made-to-measure map converts real cm ↔ the body params, and a size-chart importer applies a whole row at once.
• Skin — a complexion picker of 8 tones (fair → deep) × warm / neutral / cool undertones, on a warm subsurface-sheen skin material.
• Hair & face — hairstyles (short · bob · long · afro) with a hair colour, plus subtle toggleable face features (brows / eyes / lips) that ride the live head.

Body preset (curvy)	Skin tone + undertone	Hair & face

Jacquard ski mask	Custom pom beanie	Chullo
real face cut-outs · 4 opening styles · convertible fold · skull/flame/frost knits	pom size/colour/fur · cuff & slouch sliders · gauge presets · band patches	ear-flap hem · plus: twisted headband · neck gaiter (worn up/down) · bandana · helmet liner · skinny silk scarf

Dress the avatar beyond the garment. Rigid accessories ride the live (and animated) body — shoes · belt · bag, plus a full set of headwear & neckwear: fedora · cap · bucket hat · sun hat · beret · sport visor · cowboy · top hat · bowler · boonie · baker boy · beanie · balaclava (ski mask) · ski goggles · scarf · neck gaiter, each placed by the head/neck frame so it turns and nods with the head.

Accessories (hat · belt · bag · shoes)	Headwear & neckwear (beanie · scarf)	Balaclava (ski mask)

Blocked hats are parametric. The crown shape library presses real creases into the fedora (teardrop · centre-dent · diamond · telescope), the brim designer re-blocks width / droop / a wired edge on the fedora + bucket + sun hat, and the hat band designer wraps grosgrain / leather / braided-cord bands with bow / feather / buckle trims. The cap gets its own bill designer (flat ↔ pre-curved · contrast underbill · squatchee), a 5- vs 6-panel construction picker with real seams + topstitch, and 3D puff embroidery. The cowboy carries a cattleman crease over a side-rolled brim, the boonie snaps its brim sides up over a chin cord, the baker boy puffs an 8-gore crown, and the sun hat is woven from a real straw basket draft under a dry sheen.

Fedora (teardrop crown · grosgrain bow)	Cowboy (cattleman crease · side roll)	Straw sun hat (basket-draft plait)

And three of them are real cloth-sim catalog garments that drape with physics — a snood (cowl), a knit beanie that hugs the crown, and a scarf wrapped once around the neck with hanging tails — now with optional fringe: every strand is a live verlet chain hanging from the tail hems, swinging with a walk and settling plumb.

Cloth-sim knit beanie	Scarf with verlet fringe

More cloth-sim headwear — a silky satin durag with its nape flap, a puffed satin sleep bonnet, and a snug jersey hijab under-cap:

One scarf, many worn-states — each a distinct cloth spawn + pinning, not a preset pose:

Blanket-scarf shoulder drape	Double wrap	Cowl-to-hood
oversized square over the shoulders (ruana)	spiralled twice around the neck	a snood pulled up over the crown, with a face opening

More head coverings — the hijab style set (al-amira + the longer cape-like khimar, framing the face and draping onto the shoulders), a wrapped turban with a designer-set wrap count, and sunglasses that ride the face frame so they wear together with any hat:

Khimar (hijab set)	Wrapped turban	Sunglasses + a cap

Tailoring & finishes shipped alongside — the three classic lapel gorges (notch / peak / shawl), a hard enamel-pin print badge, and one-click party finishes:

Peak lapel	Enamel-pin badge	Party finish

Lookbook poses, authored as where the hand goes and solved with two-bone IK — a rig's bone axes are its own, and an angle that works on one arm is wrong on the other by a sign that puts a hand through the chest:

Contrapposto	Hand on hip	Arms crossed	Sitting

And a jog gait, which is not the walk clip played faster: walking is an inverted pendulum and running is a spring, so the body is highest at mid-stance in one and lowest in the other.

Jog	Freckles	Seam stress

Millinery, every block graded to the head that was measured off the rendered avatar — a band has to clear the head's widest point, and the crown has to be tall enough to contain the skull above it:

Fez + tassel	Boater	Ushanka	Fascinator

Worn on measured anatomy — the ear landmarks come from the face's own proportions, the wrist and ankle from where the limb is measured to narrow, and eyewear is specified by the lens▫bridge millimetres off a real temple:

Aviators	Tie + braces	Watch + gloves

Studio tools & fit — an in-app vector print editor (compose a graphic from shapes, no upload), an interactive tutorial checklist, a resolvable design-review panel, and petite/tall/plus auto-proportioning that resizes the body + regrades the garment in one setting:

Vector print editor	Interactive tutorial + review	Tall auto-proportioning

Each garment simulates with an XPBD cloth solver and collides against the true body surface (a BVH over the mannequin mesh) plus skeleton capsules — so it hugs the real silhouette, sleeves sit on the arms, and skirts flare naturally. Cloth also collides with itself and other garments (a global spatial-hash pass), so a flared skirt doesn't pass through itself and a layered outfit pushes off rather than interpenetrating.

Under the hood: adaptive remeshing packs solver rings where the silhouette bends (waist cinch, flare onset, puff-sleeve bell) at no extra particle cost; per-fabric aerodynamic drag gives real secondary motion; contact is inelastic, so cloth settles onto the body instead of springing off; and both solvers sleep to a dead stop when there's no wind and the body is still — so at default settings a garment hangs perfectly still, no drift or jitter, and any wind / body-move / edit wakes it.

Trapped-air loft turns a garment into a real puffer — a quilted coat (or any garment with the Puffer loft toggle) inflates off the body with an outward pressure that the stretch constraints cap, so it stands proud instead of hanging flat.

Flip the central viewport to 2D Pattern and you get the actual flat pattern of the garment you designed — the front/back bodice unwrapped with its real neckline curve, armhole and side seams, A-line skirt/dress panels, tapered trouser legs, and a shaped sleeve, each with seam allowance, grainline and notches. It's derived from the exact 3D construction, so 2D and 3D always agree.

Every garment unwraps to its true pieces — tapered trouser legs, or a bodice with darts, a shaped sleeve, and separate collar / cuff / pocket pieces, all with grainlines and per-edge seam allowance:

Headwear unwraps too — a cloth-sim hat's head tube becomes real millinery panels: a gored crown (a symmetric wedge whose height is the true slant length, cut ×6), a band strip, and a brim crescent for a visored style (a neck cowl unwraps front/back like a body tube) — all exported to SVG/DXF alongside the rest of the outfit.

2D and 3D are one design — edit either way. The quick-edit toolbar floats over both views (size · neckline · sleeve · length · width · hem), driving the same garment, so you can design entirely in 2D or 3D and the other updates live. You can import a flat pattern (DXF, round-tripping the export) back into the 2D pane, or work in Pattern (sew) mode — adjust FRONT/BACK panels, draw your own panel, and Sew & simulate to wrap them onto the body. A deep 2D pattern-making roadmap (300+ cards — drafting tools, dart engineering, grading, marker making, digitizing) is tracked in KANBAN.md.

Dress the mannequin in a whole outfit — add as many garments as you like (a top and a skirt and a jacket…), each with its own fabric, colour and print, all simulating together on one body and colliding with each other so the layers sit apart. The Object Browser lists every garment: select one to edit it, toggle visibility, and add / duplicate / delete. Full cut / copy / paste (⌘X/C/V), duplicate (⌘D) and undo / redo (⌘Z / ⇧⌘Z).

Every design you save lands on a Projects page (with a thumbnail) — reopen in one click, rename or delete, and import / export .dio files to move work between machines. An autosave + crash recovery system snapshots your working document every 15 s and offers to restore it after an unexpected close. Colorways save appearance-only colour/fabric variants of one design.

Light the shot like a photographer. Pick a studio lighting preset — Studio · Softbox · Dramatic · High-key · Runway · Golden-hour (each an azimuth/elevation-described key + rims + hemi + exposure) — and a backdrop: Studio grey · White · Product-white (flat, no floor) · Charcoal · Black (floating shot) · Blush · Sky cyclorama, or Transparent (the Render tab then exports a PNG with alpha). Every backdrop gradient is dithered so it never bands behind the figure. Pick the tone-mapping operator too — ACES · AgX · Neutral · Filmic · Reinhard — to roll bright highlights (white satin, sequins, bloom) off with more or less saturation.

Dramatic lighting	Runway lighting	Blush backdrop

See how a garment actually fits:

• Fit / tension heatmap — a slack → blue → tight → red ramp baked into the mesh, so you can see exactly where a garment pulls.
• Fit-failure (stress) view — fabric-aware colouring that reds out sooner on a stiff woven than a stretchy knit.
• Pressure / contact fit map — a cold→hot ramp of where the garment actually presses into the body (from the solver's real collision push-out): a hanging skirt reads blue, a snug bodice bearing on the bust and waist reads yellow→red — real contact-force fit analysis, distinct from strain.
• Stretch utilisation — strain as a fraction of the fabric's own usable stretch, so the colour means the same thing on denim and on a power knit. 6% strain is nothing in a power knit and past the limit in a rigid woven; this is the view that says which. Over-limit reads magenta — the garment is asking for more elongation than the cloth has.
• Wrinkle density — the mean curvature of the draped surface, so it sees folds rather than tension. Cloth can be under strain and perfectly smooth, or slack and deeply creased; no strain view can tell those apart and this one can.
• A legend on every view — built from the same colour functions the mesh is shaded with, so it can't drift from what you're looking at, and scaled to the actual fabric (a stress ramp fails at 22% strain on a rigid woven and far later on a knit).
• Strain-driven micro-wrinkles — a shader crease perturbation that nucleates real wrinkles where the cloth is under strain.
• Compression fit — Looseness goes negative (to −3 cm): activewear (sports bra · swimsuit · leggings) drafts smaller than the body and stretches over it — the strain / stress / pressure views show exactly where it squeezes.
• Measure & annotate — a tape-measure (click two points → a cm reading) and pinned notes, reprojected onto the live 3D each frame.

Fit / tension heatmap	Pressure / contact fit map	Strain-driven micro-wrinkles

Stretch utilisation	Wrinkle density

The utilisation shot is denim, which gives only ~3% usable stretch: the fitted bodice is over the fabric's limit (magenta) while the skirt hangs slack. The wrinkle-density shot is the same gown as the pressure map — the gathered waist and fold lines light up, the smooth skirt panels stay dark.

At default settings the garment hangs perfectly still (the solver sleeps when windless and the body is still). Then bring it to life:

• Animate — set the mannequin to idle / walk and the imported avatar moves on the spot with the clothes staying on and moving with it: garments pin to the body's shoulders / hips (not fixed space), so a dress swishes and a skirt sways, and the cloth colliders track the rig's bones over the moving arms and legs. Idle↔walk transitions crossfade smoothly.
• Per-fabric secondary motion (4D) — aerodynamic drag makes a light, sheer chiffon billow, float and lag while a heavy denim follows near-rigid.
• Wind presets — still · breeze · gust · runway, with a pulsing gust.
• Lookbook poses — freeze a real idle/walk frame or a procedural stance (stand · weight-shift · stride · relaxed); garments re-settle onto the pose.
• Turntable — one-click orbit → WebM.
• Shot sequencer — a keyframe timeline for camera + avatar subject, eased and recorded to WebM.
• Runway line-up — a collection shot of the garment across N colourways, composited into one PNG.
• Batch render — one crisp PNG per saved colourway, bundled into a single ZIP (a ready-to-drop lookbook set).

The avatar mid-stride, its dress moving with the walk	Chiffon caught in runway wind	A supersampled Render-tab still

(The viewport renders adaptively — full frame rate while anything moves or you interact, and a light idle heartbeat when the scene is settled, so it stays smooth and light.)

For a hero shot, the Render tab can path-trace the scene offline — a GPU path tracer (three-gpu-pathtracer) bakes the posed garments + body into a BVH and converges accumulated samples for true global illumination, soft shadows and accurate glossy fabric sheen, a step beyond the rasterised still:

Pick a size (XS – XXL) and the garment grades to fit; the Measurements panel shows the real production spec live — chest, waist, hip, length, sleeve, inseam, hem sweep, plus estimated fabric area and total seam length (toggle cm / in). All of it is derived from the exact same construction as the 3D garment and the flat pattern, so it always agrees. Graded points-of-measure span the whole size run, and an auto care label derives fibre content % + laundering lines from the fabric.

When you're ready, Export for manufacturing — one printable pack (HTML + JSON) with, per garment, a spec sheet, a fabric BOM (fabric · weight · yardage), care & content, a nested marker (realistic fabric yield + efficiency), and the embedded flat pattern — everything a maker needs to cut and sew it.

For headwear the pack adapts: a head-circumference size run (XS–XXL hat sizes from the head collider), shaping-aware care (a felted/boiled-wool hat is steamed & reshaped, never washed; a knit beanie dries flat, never tumbled), and a small-panel cost sheet with hat notions (pom · sweatband · brim wire) and a small-panel fabric yield.

Running this project requires the author's permission — see License & usage above.

Requirements: Node.js 18+ (developed on Node 20/22) and npm.

npm install
npm run dev        # launch the DesignIO desktop app (Vite hot reload)

npm run build      # bundle main / preload / renderer into ./out
npm run preview    # build, then run the packaged bundle
npm test           # headless solver / geometry / catalog tests (vitest)
npm run typecheck  # strict TypeScript, no emit
npm run capture    # re-render every README screenshot from the current build

DesignIO is bundled by electron-vite. A production build compiles the three Electron layers — main, preload and renderer — into ./out:

npm run build      # → ./out/{main,preload,renderer}
npm run preview    # run that production bundle locally (final smoke-test before shipping)

Quality gate (run before every ship):

npm run typecheck && npm test && npm run build

CI runs exactly this on Node 20 and 22 (.github/workflows/ci.yml) and must be green.

Packaging into an installer (.dmg / .exe / .AppImage) is not yet configured — DesignIO is a work-in-progress and currently ships as the ./out bundle run through Electron. Adding a distributable is a matter of wiring electron-builder (or electron-forge) to package ./out; the app is structured for it (single main entry, context-isolated preload, static renderer), but that step is intentionally left for a release milestone. Until then, npm run preview is the way to run the built app.

src/
  main/         Electron main process (window, native menu, CSP, save/open dialogs)
  preload/      context-isolated bridge
  renderer/
    core/       Viewport (scene/camera/controls + GTAO/bloom/SMAA post, adaptive render) · Environment
                (studio IBL, lighting & backdrop presets, floor, shadow-catcher) · Loop · coalesce
    avatar/     Mannequin (poseable/resizable female+male capsule body) · BodyMesh (metaball) · GlbMannequin
                (default realistic avatar) · skin · measure · poses · bodyPresets · accessories · face · colliders
    cloth/      XPBDSolver · ClothCollision (self/inter) · ClothWorld (sewn panels) · Garment · adaptiveMesh
                · FabricMaterial · fabricPresets · windPresets · simQuality
    fabric/     FabricLibrary (71 fabrics) · weaveTexture · textile · ombre · wear · swatch · sparkle
                · iridescent · quilt · lace · fur · namedColors · heatmap · wrinkle
    garments/   schema (GarmentDefinition) · registry (the 57-garment catalog, as data) · factory · decor
    garment/    GarmentController (one garment's multi-piece sim, body-anchored) · templates
    studio/     GarmentStack (the live layer stack) · document (.dio, undo, colorways) · projectStore
                · autosave · timeline + TimelinePlayer · turntable · measure + MeasureTool · lineup
    pattern/    2D panels → sew → drape
    export/     exporters3d (glTF/OBJ/USDZ) · garmentPattern (SVG/DXF) · garmentMetrics · careLabel
                · manufacture · marker · patternImport · techpack
    start/      Homepage · ProjectsPage · StartPage ("design your piece") · PreviewStudio · design · presets
    shell/      professional studio shell — StudioShell · menuBar · statusBar · library · objectBrowser · centerTabs
    ui/         Property Editor (context-sensitive panel) · controls · thumbnails · toast · design tokens + styles
tests/          headless solver / geometry / garment-catalog / fabric / export correctness (vitest)

Cloth model: an XPBD (Extended Position-Based Dynamics) mass-spring solver — structural, shear and bending distance constraints, integrated under gravity/wind in fixed substeps, with mesh-BVH body collision

• capsule broadphase + friction + global particle self/inter-collision. Real-time, not offline finite-element — tuned for 60 fps, and it sleeps at rest.

Data-driven catalog: a garment is a GarmentDefinition (category + composable pieces + which construction controls it supports). A factory turns it into simulated cloth. Adding a garment, a fabric, or a supported detail is a data change, not new code.

Shipped: data-driven garment schema + factory · 57-garment catalog (tops · bottoms · dresses · one-piece · outerwear · cloth-sim headwear/neckwear) with a category picker + schema-driven construction UI · 29-fabric library by family · fabric thickness (two-sided garments with a lining shell) · full construction detail (collar/cuff/pleats/darts/pockets/hem/closure + lining/interfacing/waistband/…) + drape-following topstitch · surface finishes (textiles · ombré · distressing · sequins · iridescence · quilting · lace · faux-fur · photo→PBR swatch) · per-part physics (leather drapes stiffer than jersey) · per-panel fabric (front vs back) · prints on any panel (flat / embroidery / appliqué) · imported GLB avatar as the default body · female/male shaping + body presets · skin tones · hair · face · lookbook poses · accessories, headwear & neckwear · mesh-accurate BVH body collision + cloth self/inter-collision · body-pinned garments — the avatar walks in place with its clothes on · 4D per-fabric secondary motion · trapped-air puffer loft · wet-look finish · PBR surface realism (procedural weave roughness + per-family sheen + warp-aligned anisotropy + angle-weighted normals) · lighting & backdrop presets + selectable tone-mapping (ACES/AgX/Neutral/Filmic/Reinhard) · fit heatmap / stress / pressure map / wrinkles · measure & annotate · timeline shot-sequencer · turntable · runway line-up · batch render (ZIP) · adaptive rendering · autosave + crash recovery · an onboarding tour · glTF/OBJ/USDZ/SVG/DXF/tech-pack/manufacturing-pack export · a production-grade, consistent UI.

Planned (in phases): tailored outerwear (lapels, structured coats) · more garments and fabrics · distributable installers (electron-builder) · export & fidelity polish.

DesignIO © 2026 Zayan Khan — all rights reserved. Ask before using: khanzayan_123@hotmail.com
