pfx-scene

One TOML format for 3D scenes, prefabs and material libraries, shared by a game engine and a 3D editor, so a scene saved in one opens in the other. It is the content format of pfx, the PITO MD game and render engine, and of its editor; this crate reads, checks, resolves, edits and migrates it.

• Fast: resolves a 1,000-object scene in 25 ms and checks its whole project in 28 ms; a 100-object scene takes 3 ms for either.
• Small: four dependencies (serde, toml, toml_edit and this repository's manf; 21 crates in the whole tree), no unsafe code, about 14,700 lines of Rust with manf.
• Exact: every mistake is reported at its file, line and column with a stable code, and every edit keeps the author's comments, spacing and key order.

Works on Linux, Windows and macOS (CI-tested on all three).

It is for the tools on either side of a scene file: an engine's loader, an editor that saves what a person arranges, a build tool that emits scenes, and a text editor that marks mistakes as someone types.

Add it to a Rust project, on Linux, Windows or macOS:

[dependencies]
pfx-scene = { git = "https://github.com/gmrdad82/pfx-scene", tag = "v1.0.1" }

Or try it on the demo project first, with a stable Rust toolchain:

git clone https://github.com/gmrdad82/pfx-scene && cd pfx-scene
cargo run --release --example scene-check -- examples/demo

The shortest useful program opens a project, prints every finding and resolves its scene:

use std::path::Path;

let project = pfx_scene::Project::open(Path::new("my-game")).unwrap();
for diagnostic in project.check() {
    println!("{diagnostic}");
}
let scene = project.scene(Path::new("scenes/room.scene.toml")).unwrap();
println!("{} objects", scene.objects.len());

A project is a folder with a project.toml, and every file in it is plain TOML that starts with format = 1. This is the demo's scene, shortened:

format = 1
materials = ["materials/room.materials.toml"]

[mesh.ball]
id = "ttfwjw4wnm"
file = "assets/ball.gltf"

[[object]]
id = "j66hkn5wx4"
name = "lamp"
mesh = "ball"
material = "brass"
at = [0.0, 2.4, 0.0]
scale = 0.3

# Two crates from one prefab; the second is turned and lighter.
[[object]]
id = "axxz3n1hcj"
name = "right crate"
prefab = "prefabs/crate.prefab.toml"
at = [1.2, 0.5, 0.3]
rotate = [0.0, 30.0, 0.0]

[object.set]
"box.body.density" = 0.5

Scenes (*.scene.toml), prefabs (*.prefab.toml), material libraries (*.materials.toml) and collision proxies (*.proxies.toml) cover meshes, lights, materials, the sky, sun, haze, camera and render settings, rigid bodies, character controllers, trigger volumes, camera rigs, collision layers, glTF animation clips, sprite atlases, tile layers, and a game's tunables with their ranges. Assets are standard files referenced by path: glTF 2.0, PNG, WAV or Ogg Vorbis, TTF or OTF, Radiance HDR. docs/format.md specifies every key, its type, default and range.

The clip at the top: Project::check checks a whole project and check checks one unsaved buffer against it, so a text editor can mark mistakes as someone types. Each finding has a file, a line, a column, an end, a stable code (bad-reference, path-case, missing-key and the rest, listed in the spec) and, where it helps, the other place involved. A misspelt material, a path whose case differs from the disk, a key of the wrong type, an id used twice and a reference to nothing are each one finding, at the exact text.

Project::scene resolves a scene: includes merged, prefabs placed as objects with their per-placement overrides ([object.set]), and every reference rewritten to the key of the entry it names. A placed entry's key and id are namespaced by its placement (right crate/box, axxz3n1hcj/6dek3mm9mh), so two placements of one prefab never collide. References go by id, with names as labels, so a rename or a move never breaks them. Includes and prefabs nest up to 64 deep, and a cycle is refused with its chain of files.

SceneEdit edits a scene's files in place. A changed value keeps its place, its neighbours, the comments and the number spelling, so a diff shows only what changed. An edit the checker would refuse is refused before anything is written. Edits group into undo and redo steps by exact text, and dry_run computes an edit's patches without writing.

Every file names its format version. An older file is read through an in-memory migration, with its findings pointing into the file as written, and Project::migrate rewrites it on disk through the same writer. A newer file than the crate knows is refused with the version it knows.

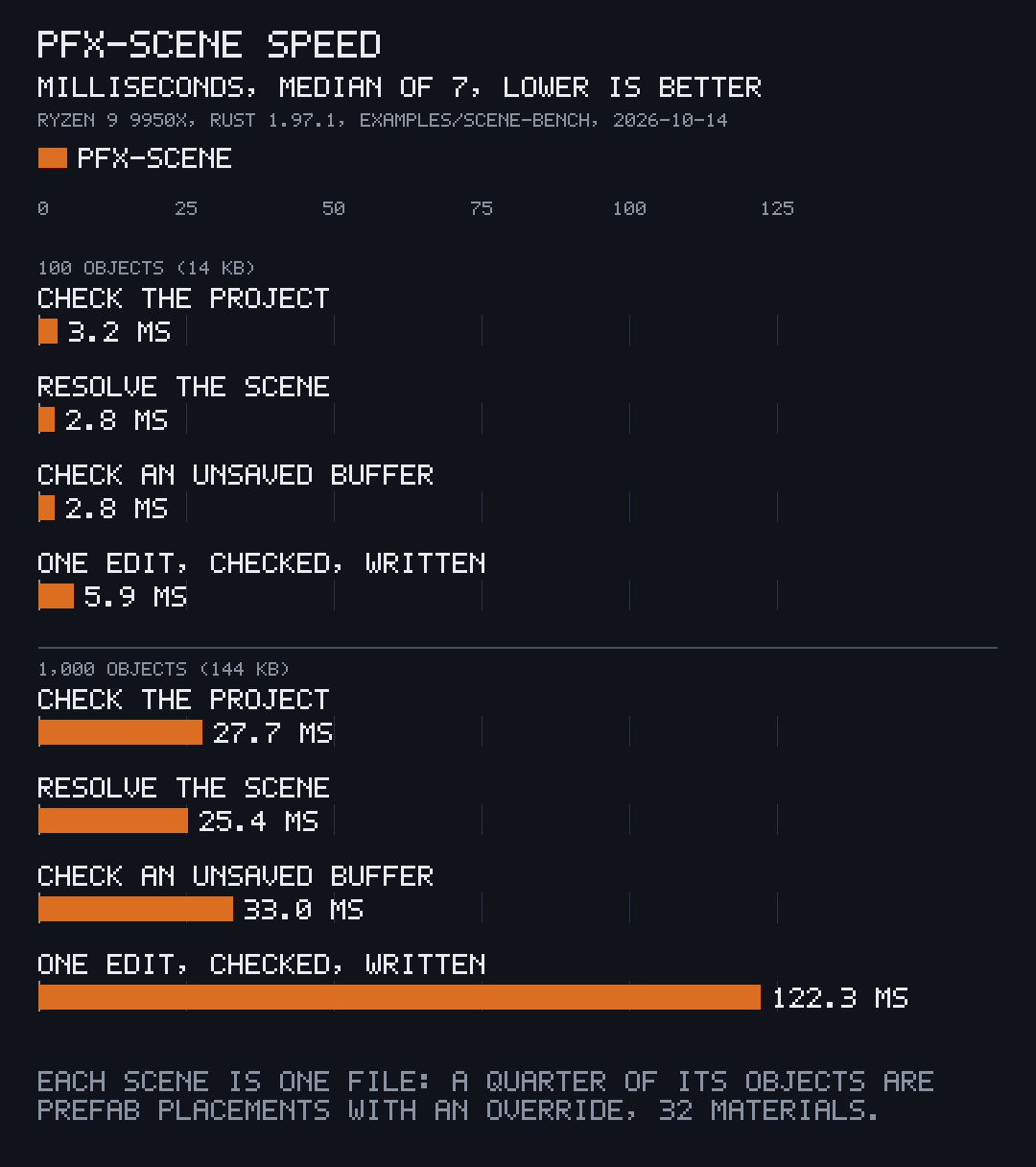

How it was measured: cargo run --release --example scene-bench -- tmp/bench 100 1000 10000, which writes a project per size (one scene file, a quarter of its objects prefab placements with an override, a quarter with rigid bodies, 32 materials, ids filled by Project::fix) and prints the median of 7 runs of each step. Measured once on 2026-10-14 on an AMD Ryzen 9 9950X under Linux with Rust 1.97.1, while the machine was busy with other work; nothing was re-run. The times grow faster than the object count from 1,000 objects up.

use std::path::Path;

use pfx_scene::{Project, SceneEdit, Target, check};

let project = Project::open(Path::new("my-game")).unwrap();
for diagnostic in project.check() {
    println!("{diagnostic}");
}

let scene = project.scene(Path::new("scenes/room.scene.toml")).unwrap();
for object in &scene.objects {
    println!("{} at {:?}", object.key, object.value.at);
}

let buffer = std::fs::read_to_string("my-game/scenes/room.scene.toml").unwrap();
let marks = check(&buffer, Path::new("scenes/room.scene.toml"), &project);
println!("{} marks for the editor", marks.len());

let mut edit = SceneEdit::open("my-game/scenes/room.scene.toml").unwrap();
edit.set(&Target::Object("crate".into()), &["at"], [0.0, 0.5, 1.0]).unwrap();
edit.undo().unwrap();

let migrated = project.migrate(Path::new("scenes/old.scene.toml")).unwrap();
std::fs::write("my-game/scenes/old.scene.toml", migrated).unwrap();

• Project::check checks every file of a project; check checks one unsaved buffer against it.
• Project::scene resolves a scene; Project::read returns one file as its typed data, plain serde structs.
• SceneEdit edits a scene's files in place, refusing any edit that the checker would refuse; dry_run computes an edit's patches without writing.
• Project::scene_with and check_with resolve and check with unsaved texts in place of the files.
• Project::fix fills the ids a scene's files lack.
• Project::migrate rewrites an older file as the current format.
• json_schema (the schema feature) gives the JSON Schema of a kind of file, for TOML editors; the schemas of each version are in docs/schema/.
• pack puts a scene and every file it reads into one .manf file, the same bytes every time; unpack writes them back out. Project::open_manf opens one, and checks, resolving and SceneEdit work on the TOML inside it in place.

The examples in examples/ are small programs on this API: scene-check checks a project or a .manf scene, scene-tree prints a resolved scene, scene-write moves, renames, sets a material or migrates a file, scene-pack packs a scene into a .manf and unpacks one, scene-schema writes the JSON Schemas, and scene-bench measures the table above. What changed in each version is in CHANGELOG.md.

The repository also holds manf (manf/), the crate for .manf files: one file of named chunks (a scene's TOML files, its glTF, the files it names, a thumbnail), each checksummed and stored or compressed on its own with LZ4 or deflate, so a reader decodes only the chunks it needs and borrows stored ones without a copy. A reader refuses a cut, oversized or corrupt file with an error, never a panic, and the writer gives the same bytes for the same chunks. Its only dependency is miniz_oxide; its LZ4 and CRC-32 are ported from lz4_flex and crc32fast. It pins the same way:

[dependencies]
manf = { git = "https://github.com/gmrdad82/pfx-scene", tag = "v1.0.1" }

pfx-scene is one of the PITO MD tools. pfx, the game and render engine with its scene editor, and Manfred, the scene builder and viewer, keep their scenes in this format and depend on this crate. The clips here were recorded with prec and made into GIFs with pcod from pito-codecs, and the chart was drawn by pito-compare.

A stable Rust toolchain (edition 2024) and cargo-nextest are all it needs.

bin/gate          # rustfmt, clippy with no warnings, every test and the doc tests
bin/gate --fast   # what CI runs on every push and pull request; the same checks while the crate is small

Issues and pull requests are welcome. Please read the code of conduct first, and report security problems as SECURITY.md says. A change to the format changes docs/format.md with it, and bin/gate passes before a pull request.

The code is MIT licensed: see LICENSE. The MIT grant covers the code only: the PITO MD name and every app and game name and logo stay Catalin Ilinca's, all rights reserved, as TRADEMARKS.md says. Where the format and the first code came from is in NOTICE.md.
