pito-list

The list behind the PITO MD terminal apps, as a crate: selectable list rows for ratatui apps, in the style of HEY's terminal UI. The selected row gets a bold "▌ " marker, the columns pad to line up and drop by priority when the terminal narrows, and the list scrolls, pages, selects ranges and answers clicks. It has no words of its own: every word, style and key comes from your app, so any language works.

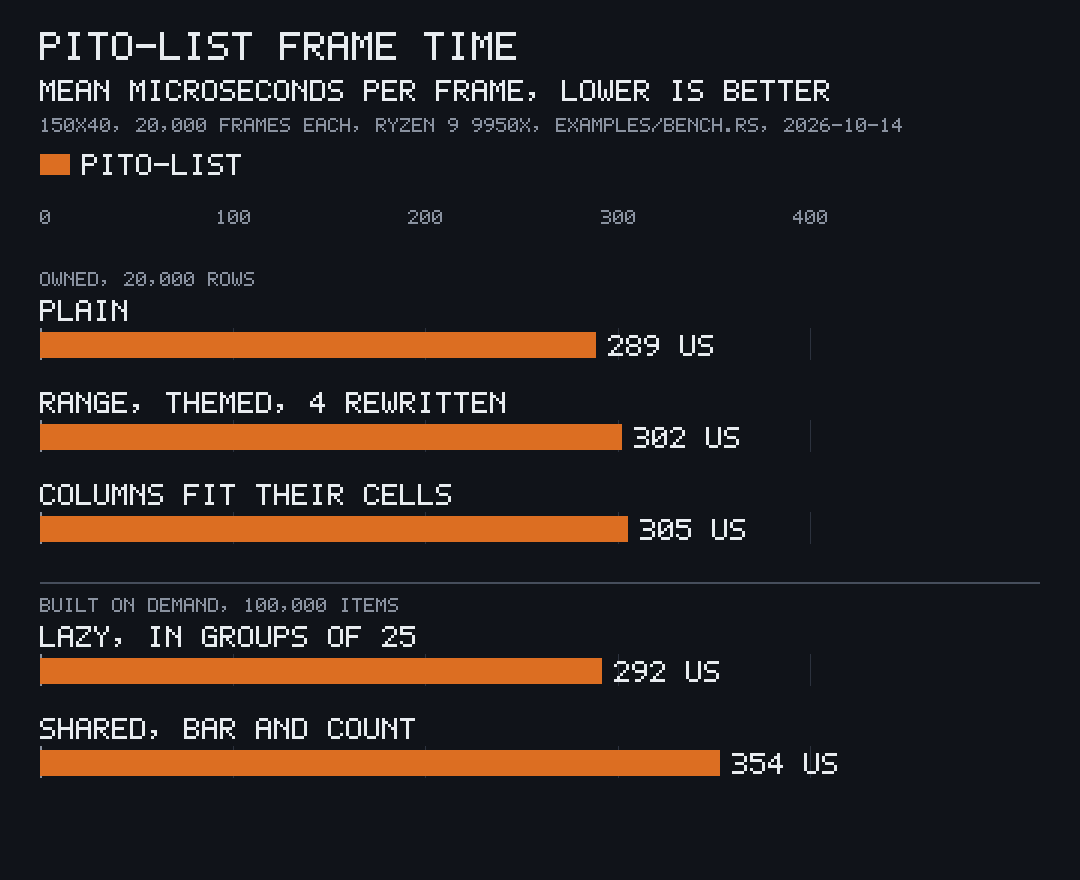

It is fast and stays fast as the list grows: about 0.3 ms a frame for a 20,000-row list at 150×40, the same for 100,000 items built on demand, and zero heap allocations in a warm frame. Drawing the same 20,000 items, it is 70× faster than a ratatui Table built from every row.

Works on Linux, Windows and macOS.

Got questions or doubts? Ping me on Discord: https://discord.gg/XsNcn3kYzn

Measured once on 2026-10-14 on an AMD Ryzen 9 9950X under Linux, Rust 1.97.1, release profile, with cargo run --release --example bench and cargo run --release --example versus; the build time with cargo build --release --lib into an empty target folder. Windows and macOS weren't timed.

Rows can be grouped under headings (Row::heading) with blank lines between them; the cursor, paging and clicks skip both. select_range draws every row between two ends in the selected style for a Visual mode, with the marker on the cursor row alone. Cells keep their own colours under the selection when you ask (Styles::keep_colours(true)), and a cell can be several styled parts (Cell::parts), like "v1.4" followed by a faint "→ v1.5".

The terminal narrows from 96 to 38 columns and widens back. Each column has a minimum, a preferred width and a drop priority: when the width runs out the highest priority drops first (Size, then Version here), a pinned() column never drops, and the flexible column (the message) takes what's left and clips with "…". fit(max) sizes a column to its widest cell on screen, right() aligns numbers, and rest() lets one cell run across the columns after it (the release note above). Widths are Unicode-aware, so diacritics, wide glyphs and "…" measure and clip cleanly.

The view keeps the selection in view, paging moves by the rows on screen (Paging::View keeps the cursor on its screen line instead), and an end line scrolls in after the last row. ListView::scrollbar(Some(Bar::LINE)) draws a slim bar with half-cell steps, and ListView::count(..) writes "1–13 of 25" in your words and number format, both only when the list overflows. Keys come in as the crate's own Key (arrows, page keys, home, end and enter, or Keys::VIM for j/k, g/G and ctrl+u/ctrl+d) and go out as a Step; hit names the row under a mouse click.

row_mut, Cell::set_text, Cell::set_style and Mark::set_text rewrite a row's texts and colours in the strings already there, so a frame that updates counters every 120 ms and draws allocates nothing once the strings have grown to their texts.

A list can own its rows, or read them from a Source: Shared::new(items, builder) wraps your Arc<Vec<T>> and builds a row only when a draw asks for it, so 100,000 jobs, pings or log lines cost what the 40 rows on screen cost. Hand it a new vector every frame for the price of an Arc clone.

examples/versus.rs draws the same 20,000 items (five columns, a header, the selection moving every frame) at 150×40, with ratatui 0.30's own layout cache on:

A Table handed every row, the way ratatui's own examples build one, is 70× slower and allocates 52 MB a frame. A Table handed only the rows on screen is 1.7× faster than pito-list, but then the app does the scrolling itself, and it still allocates where pito-list's owned rows don't; pito-list also does the column dropping, sections, ranges, the end line, the scrollbar and the count in that time.

It isn't on crates.io; add it from git, pinned to a release tag. The same line works on Linux, Windows and macOS:

cargo add pito-list --git https://github.com/gmrdad82/pito-list --tag v1.0.1

or in Cargo.toml:

pito-list = { git = "https://github.com/gmrdad82/pito-list", tag = "v1.0.1" }

Turn on the crossterm feature for Key::from(crossterm::event::KeyEvent) (crossterm 0.29); without it the crate has no backend dependency. The conversion turns Alt, Super, Meta or Hyper on a non-character key into Key::Other, keeps Alt apart on a character (Key::Alt('y')), and passes Ctrl+Alt plus a character on as that character, which is how AltGr arrives on some platforms, so diacritics can still be typed. Ctrl and Shift on a named key (Tab, Enter, Esc, Backspace, the arrows, Home, End, Page Up, Page Down, Delete) arrive as Key::Mod(mods, named), such as Key::Mod(Mods::CTRL, Named::PageDown), so an app can bind them; the plain key stays Key::PageDown. Shift+Tab is Key::BackTab. The built-in key maps hold only plain keys, so a modified key moves nothing in the list and passes to your app unless you map it.

Three rows, three columns, the cursor moved down once:

use pito_list::{Cell, Column, Key, List, ListView, Row, Styles};
use ratatui::{
    buffer::Buffer,
    layout::Rect,
    style::{Color, Modifier, Style},
    widgets::Widget,
};

let columns = [
    Column::new("Job", 8, 14).pinned(),
    Column::new("Owner", 5, 7).priority(1),
    Column::new("Message", 8, 0),
];
let mut list = List::new().with_rows([
    Row::new(["deploy api", "web", "uploading the bundle"]),
    Row::new([
        Cell::new("build docs"),
        Cell::new("docs"),
        Cell::new("waiting for a runner").faint(),
    ]),
    Row::new(["rotate logs", "ops", "starts at 02:00"]),
]);
list.key(Key::Down);

let styles = Styles::new().selected(Style::new().fg(Color::Yellow).add_modifier(Modifier::BOLD));
for width in [44, 24] {
    let area = Rect::new(0, 0, width, 4);
    let mut buffer = Buffer::empty(area);
    ListView::new(&mut list, &columns)
        .styles(styles)
        .header(true)
        .render(area, &mut buffer);
#   let lines: Vec<String> = (0..area.height)
#       .map(|y| {
#           let line: String = (0..area.width).map(|x| buffer[(x, y)].symbol()).collect();
#           line.trim_end().to_owned()
#       })
#       .collect();
#   let expected: &[&str] = if width == 44 {
#       &[
#           "  Job             Owner    Message",
#           "  deploy api      web      uploading the bu…",
#           "▌ build docs      docs     waiting for a ru…",
#           "  rotate logs     ops      starts at 02:00",
#       ]
#   } else {
#       &[
#           "  Job           Message",
#           "  deploy api    uploadi…",
#           "▌ build docs    waiting…",
#           "  rotate logs   starts …",
#       ]
#   };
#   assert_eq!(lines, expected);
}

draws, at 44 and then 24 cells wide (the Owner column drops when it doesn't fit):

  Job             Owner    Message
  deploy api      web      uploading the bu…
▌ build docs      docs     waiting for a ru…
  rotate logs     ops      starts at 02:00

  Job           Message
  deploy api    uploadi…
▌ build docs    waiting…
  rotate logs   starts …

In an app, keep the List in your state, draw it with frame.render_widget(ListView::new(&mut list, &columns), area), and pass it your key events with list.key(Key::from(event)) (the crossterm feature): it answers Step::Open(index) for enter.

git clone https://github.com/gmrdad82/pito-list
cd pito-list
cargo run --example demo --features crossterm

The demo is the clip at the top: sample jobs in three sections under a styled header, sizes that grow and warm in place, the view following the selection with a scrollbar and the rows on screen counted at its foot, v for a range, ctrl+d and ctrl+u to page, g and G for the ends, enter to open and ctrl+c twice to quit, as in every PITO MD terminal app (the quit guard comes from pito-footer). Every clip and still on this page is recorded from it with prec, the tapes kept in render/.

docs/guide.md has every feature in detail, the whole API and a full example with lazy and shared sources, sections, a scrollbar and a count. docs/install.md and the guides in docs/guides/ take one task a page, from a first list in an app to 100,000 items built on demand.

pito-list is one of the crates behind the PITO MD terminal apps, brought together by pito-tui, the app shell, with pito-header (numbered sections at the top), pito-footer (key hints, notices and confirms at the bottom) and pito-hourglass (the loading animation). The clips on this page are recorded with prec and made into GIFs with pcod from pito-codecs, and the charts are drawn by pito-compare.

bin/gate runs cargo fmt --check, cargo clippy --all-targets --all-features -- -D warnings, every test with cargo nextest (the tests draw into ratatui buffers, and a counting allocator holds that a warm frame allocates nothing), the examples in this README and the pages in docs/ as doctests, and the release build of the bench example. bin/gate --fast leaves the bench build out. The charts are drawn from the data in docs/charts/ with pcmp docs/charts/<name>.toml --out docs/images. bin/docs-bundle builds tmp/docs-vX.Y.Z.tar.gz for Cargo.toml's version: the pages in docs/, an overview from the top of this README, the changelog and the cargo doc API reference, with every image they use. Every tag's GitHub Release carries it.

Issues and pull requests are welcome. Please read the code of conduct first. A change keeps bin/gate green with no warnings, keeps a warm frame free of allocations, and leaves every word, style and key to the app. Report a security issue privately, as SECURITY.md says, not in a public issue.

The code is MIT licensed, © Catalin Ilinca: see LICENSE. The MIT grant covers the code only: the PITO MD name and its logos are © Catalin Ilinca, all rights reserved, and are not covered by it; see TRADEMARKS.md. The look is in the style of HEY's terminal UI; see NOTICE.md.
