ProToken: Differentiable Protein Engineering through Diffusion Transformer over Neural Amino Acids

This is the github repo for the paper Differentiable Protein Engineering through using Diffusion Transformer over ProTokens. An early version is preprinted at biorxiv.

ProTokens, developed by the Gao Group at Peking University, are machine-learned "amino acids" derived from protein structure databases via self-supervised learning, providing a compact yet informative representation that bridges "1D" (sequence) and "3D" (structure) modalities of proteins. Building on ProTokens, we develop PT-DiT, a diffusion transformer that jointly models protein sequences and structures through a generative objective. ProTokens and PT-DiT enable efficient encoding of 3D folds, contextual protein design, sampling of metastable states, and directed evolution for diverse objectives.

Running example scripts in example_scripts requires:

• python==3.10
• jax==0.4.28, jaxlib==0.4.28
• flax==0.8.3
• ml-collections==0.1.1
• dm-tree==0.1.8
• dm-haiku==0.0.12

• diffrax==0.6.0
• scikit-learn==1.5.1
• biopandas==0.5.1
• biopython==1.84

In theory, any environment compatible with the packages mentioned above should run successfully. We also provide requirements.txt which can directly create a compatible environment via pip install -r requirements.txt (with possible redundant dependencies). Our configuration includes Ubuntu 22.04 (GNU/Linux x86_64), NVIDIA A100-SXM4-80GB, CUDA 12.2 and Anaconda 23.7.2. The complete notebook execution takes approximately 0.5 hours.

We implement FlashAttention to accelerate PT-DiT inference. Note that protein sequences must be padded such that their length (NRES) becomes a multiple of 128 for compatibility. Users may disable this feature by setting flash_attention_flag = False in the configuration file (dit_config.py).

Before running scripts, download pre-trained checkpoints of ProToken encoder/decoder and PT-DiT in here, and move them into ckpts.

• Compactness: ProTokens represent protein structures as machine-learned "amino acids", a structure-aware "amino acid" (vocabulary size=512) is assigned to each residue of proteins with ProToken encoder.
• Informativeness: Compared with natural amino acid (vocabulary size=20), ProTokens can be faithfully "(re)fold" into corresponding structures. Furthermore, ProTokens can distinguish between different conformations, which are considered as degenerate in sequence-based representations.

example_scripts/encode_decode_structure.sh and example_scripts/encode_decode_structure_batch.sh illustrate how to encode structure (in .pdb format) or structures (a directory of pdb files) into ProTokens, and decode them back into reconstructed structure(s). The resulting ProTokens are saved in vq_code_indexes.pkl or vq_code_indexes_dict.pkl file.

For applications requiring continuous embeddings rather than discrete tokens, all ProToken embeddings (32-dimensional vectors) are archived in protoken_emb.pkl as a 512×32 array. Structure embeddings can be retrieved by array indexing with the corresponding ProToken identifiers.

We also provide a Colab notebook for ProToken encoding and decoding process.

ProTokens provide a unified perspective on protein sequences and structures. PT-DiT, a diffusion transformer that models the joint probability of protein sequences and structures, can co-generate diverse proteins in the form of compatible sequence/structure pairs.

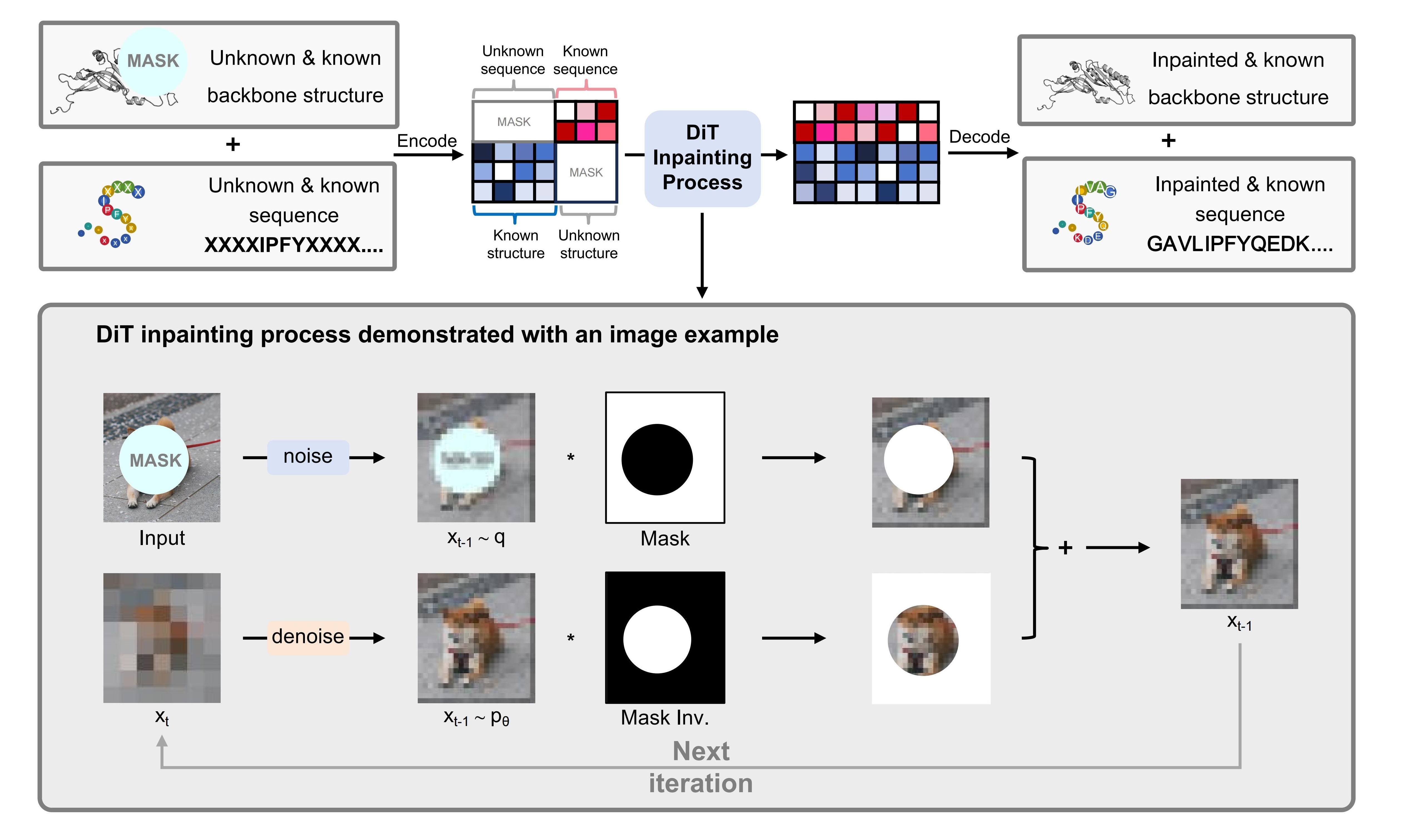

Furthermore, through RePaint algorithm, PT-DiT can "infill" sequences/structures with given context. Therefore, pre-trained PT-DiT becomes a zero-shot toolkit for various tasks in protein engineering, such as (contextual) inverse folding, functional site scaffolding, etc.

example_scripts/de_novo_design.ipynb and example_scripts/repaint.ipynb illustrate how to generate and edit proteins with PT-DiT.

Using probability flow ordinary differential equation formulated in diffusion models. Pre-training of PT-DiT yields a compact and organized latent Gaussian space (which is sequence-aware and structure-aware) of proteins. By virtue of its compactness and informativeness, this latent space is suitable for manipulating and evolving proteins:

• Interpolation between two functional conformations reveals intermediate states in protein dynamics. Conjugately, Interpolation between two remote structural homologs (re)discovers evolutionary and novel proteins.

• Few-shot activate learning of activity profile improves the efficiency of directed evolution.

example_scripts/latent_space.ipynb illustrates how proteins can be interpolated and evolved in the latent space of PT-DiT.

...

@article{lin2023tokenizing,
    title={Tokenizing Foldable Protein Structures with Machine-Learned Artificial Amino-Acid Vocabulary},
    author={Lin, Xiaohan and Chen, Zhenyu and Li, Yanheng and Ma, Zicheng and Fan, Chuanliu and Cao, Ziqiang and Feng, Shihao and Gao, Yi Qin and Zhang, Jun},
    journal={bioRxiv},
    pages={2023--11},
    year={2023},
    publisher={Cold Spring Harbor Laboratory}
}

For questions or further information, please contact fengsh@cpl.ac.cn or jzhang@cpl.ac.cn.
